A proposed earthquake early warning system could have provided several communities an alert of 10 seconds or more ahead of strong shaking from the magnitude 7.3 quake that occurred south of Sand Point near the tip of the Alaska Peninsula in mid-July.

That analysis is provided by Alex Fozkos of the Alaska Earthquake Center’s systems team at the University of Alaska Fairbanks Geophysical Institute.

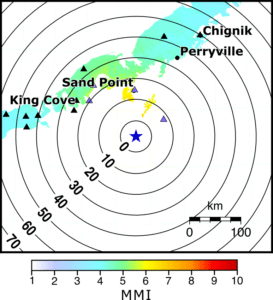

“Individuals in Sand Point could have expected approximately 10 seconds of warning time before shaking increased to its strongest,” Fozkos said. “In King Cove, individuals could have expected a warning of approximately 20 seconds.”

Sand Point is 55 miles from the epicenter; King Cove is slightly farther away. The community of Chignik, about 140 miles from the epicenter, would have received about 50 seconds of warning.

Fozkos’ Sand Point analysis is based on a hypothetical early warning system. The Alaska Earthquake Center and the U.S. Geological Survey earlier this year described the first phase of implementing the proposed USGS ShakeAlert warning system, which operates in California, Oregon and Washington.

The Sand Point analysis was enabled by earthquake early warning modeling by Fozkos. That modeling system was published today in the Bulletin of the Seismological Society of America. The Sand Point analysis is not part of the research paper, however, as it occurred after the paper was submitted.

Research professor Michael West, the Alaska Earthquake Center’s director and state seismologist, is a co-author.

For the research paper, Fozkos ran numerous warning time scenarios in several categories with varying inputs such as locations, magnitudes and fault configurations.

“This lays the groundwork for showing potential stakeholders how an early warning system could benefit Alaskans and why they should be paying attention,” said Fozkos, who conducted the research at the UAF Geophysical Institute while a graduate student.

Fozkos and West define warning time as the time difference between when a person receives an alert and the arrival of peak ground motion.

In the research paper’s scenario for the Southcentral and Southeast coasts, Fozkos simulated a magnitude 8.3 earthquake that created shaking intensities of 7 to 8. Shaking at those levels can cause moderate to heavy damage to buildings and would be widely felt.

Magnitude and intensity don’t always correspond. The earthquake magnitude scale measures the energy released at the quake’s source, while the shaking intensity scale describes the strength of ground shaking at specific locations.

Alerts for Southcentral and Southeast residents in that scenario could be issued 10 to 33 seconds after a quake occurs, with an average of 24 seconds, Fozkos writes in the research paper. Alerts would be issued quickest in the Southcentral region, where sensor density is highest.

“Having more stations in an area means an earthquake can be detected faster and a warning can be issued faster,” Fozkos said.

An early warning system uses a network of seismic sensors to detect an earthquake’s fast-moving primary, or P, waves as soon as they begin. It then calculates the earthquake’s location and magnitude to send alerts before the slower, more-damaging secondary, or S, waves arrive.

Alaska’s initial ShakeAlert phase, if funded, would focus on the Anchorage, Fairbanks, Kodiak and Prince William Sound regions, which include about 90% of the state’s population.

The federal-state system would consist of 450 real-time Advanced National Seismic System stations. Of those, 20 exist in the state, 270 would be new stations and 160 would be upgraded existing stations.

Fozkos’ research provides essential information to show how Alaskans could benefit from an earthquake early warning system. His work assumes a generic warning system, but his modeled outcomes are assumed to be comparable with ShakeAlert.

West said the science and support to establish early warning in Alaska has been in the works for several years and that the research paper’s goal is to make it “feel real and accessible.”

“Alaska has so many types of earthquakes that it can be difficult to explain to people what is possible,” he said. “This study takes complicated algorithms and technologies and shows what might happen in real world situations.”

Fozkos said Alaska’s tectonic environment is vastly different from that of the West Coast states.

“We have crustal earthquakes, we’ve got the deep earthquakes in the slab, we’ve got the interface earthquakes, there’s strike slip, there’s normal faulting.”

“If we’re going to advocate for an earthquake early warning  system, then we owe Alaskans the numbers that are directly tied to Alaska and not to California, Oregon and Washington,” he said.
